Lifts for Cars, Trucks, and Light Commercial Vehicles

2-Post Lifts, 4-Post Lifts, Scissor Lifts, and In-Ground Lifts engineered for vehicles up to 20,000 lbs. Professional-grade equipment designed for dealerships, independent repair shops, fleet service facilities, and high-volume automotive operations.

2-Post Lifts

CHALLENGER Lifts 2-POST LIFTS

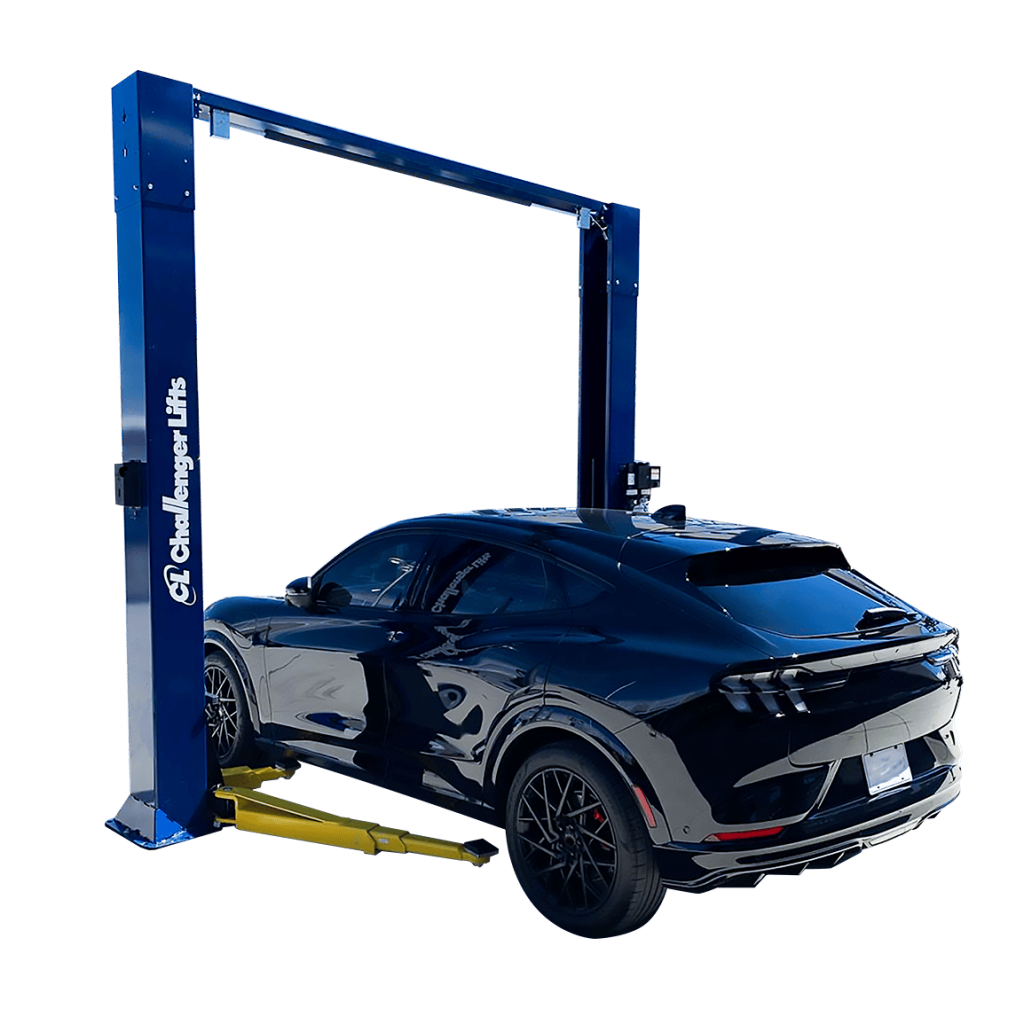

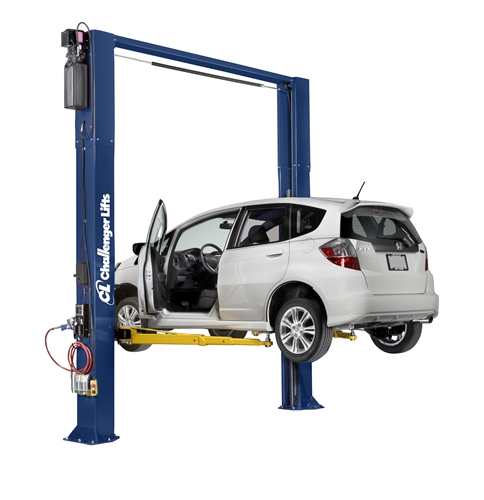

Challenger Lifts' two-post lifts work well for dealerships, tire shops, and independent service centers. Symmetric configurations center the vehicle between the columns, while asymmetric setups rotate the vehicle toward the rear for easier door access. Versymmetric models offer the flexibility to do both.

Available in capacities from 9,000 to 16,000 lbs to handle everything from passenger cars to light commercial vehicles.

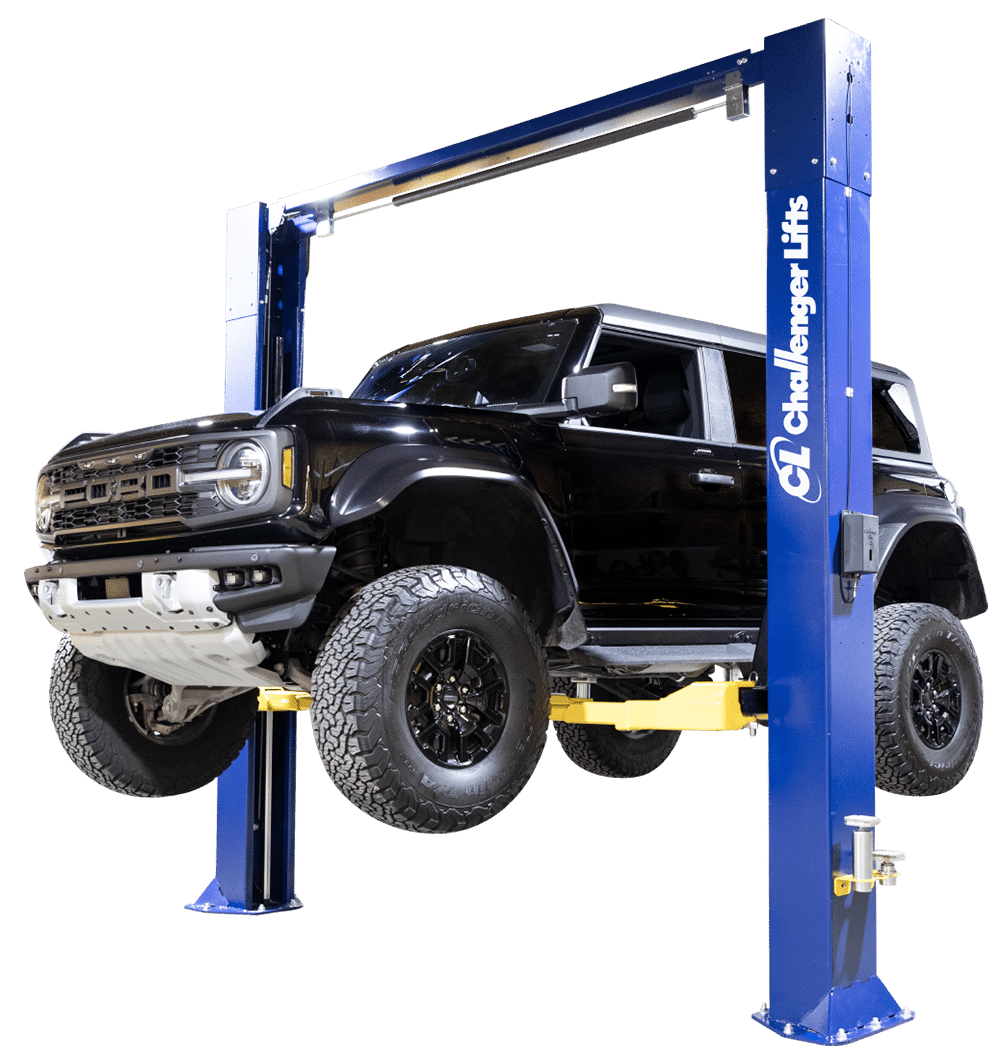

CL10AV3 (10K Versymmetric)

  • Capacity: 10,000 lbs.
  • Rise Height: 74-3/4 in.
  • Rise Time: 38–24 sec
  • Lift Configuration: Versymmetric 3-Stage
  • Min. Ceiling Height: 12 ft. (standard) - Additional 2/3 foot extensions available

CL12A / CL12A-LC (12K Standard & Low-Ceiling)

  • Capacity: 12,000 lbs.
  • Rise Height: 84-3/4 in. (standard) / 80-3/4 in. (low-ceiling)
  • Rise Time: 63–38 sec
  • Lift Configuration: Symmetric 3-Stage
  • Min. Ceiling Height: 13 ft. 9 in. (standard) / 12 ft. (low-ceiling)

CL16 / CL20 (16K & 20K)

  • Capacity: 16,000 / 20,000 lbs.
  • Rise Height: 75-3/4–81-3/4 in. (16K) / 76-7/8–84-7/8 in. (20K)
  • Rise Time: 62 sec
  • Lift Configuration: Symmetric
  • Min. Ceiling Height: 13 ft. 8 in.–16 ft. 8 in. (model dependent)

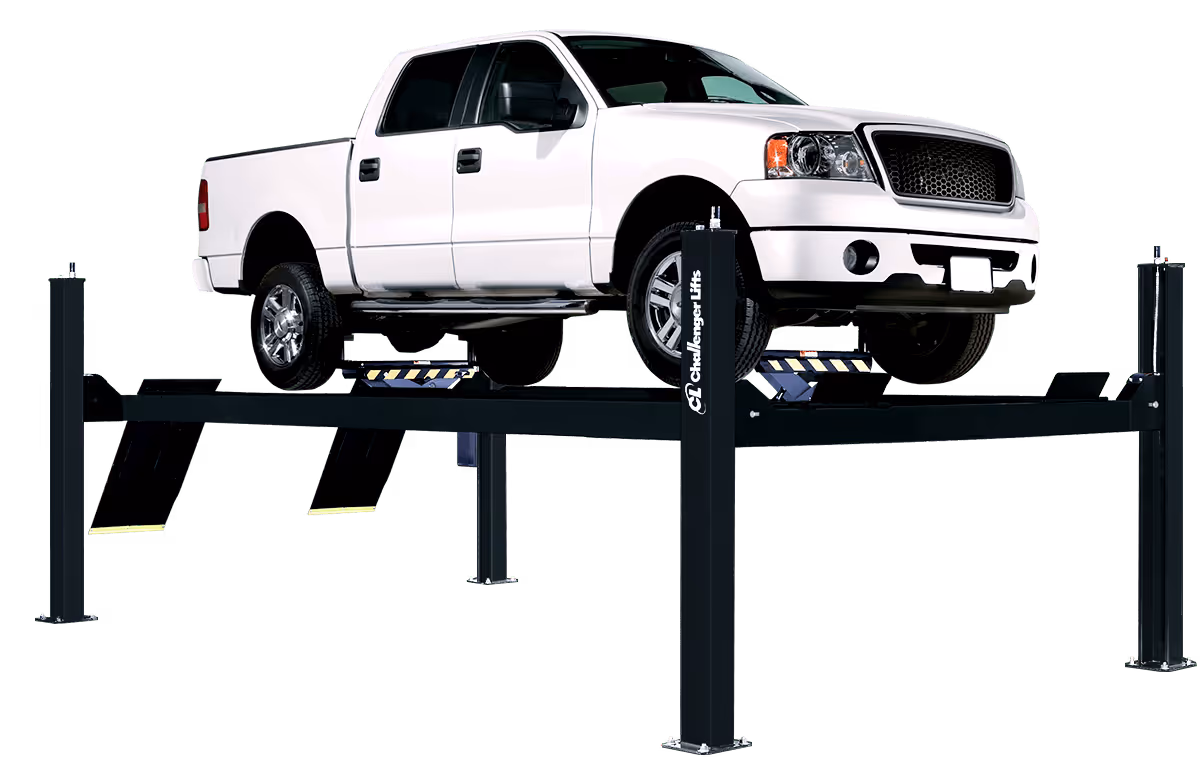

4-Post Lifts

CHALLENGER Lifts 4-POST LIFTS

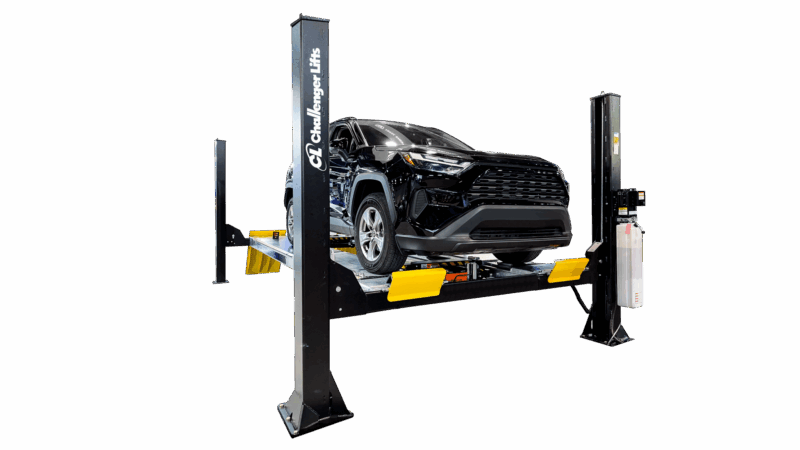

Challenger Lifts' four-post lifts offer drive-on convenience for service centers that work on a wide range of vehicles. The open design gives technicians easy access to the undercarriage, wheels, and brakes, and the smooth hydraulic operation keeps things moving.

Available in capacities from 14,000 to 20,000 lbs to handle everything from cars and trucks to heavy fleet vehicles.

4115 (15K Alignment)

  • Capacity: 15,000 lbs.
  • Rise Height: 78 in.
  • Rise Time: 85 sec
  • Max. Wheelbase: 183–210-1/2 in.
  • Motor: 3HP, 208v-230v, 1Ph

44018 (18K Alignment)

  • Capacity: 18,000 lbs.
  • Rise Height: 78-1/2–83-3/4 in.
  • Rise Time: 60 sec
  • Max. Wheelbase: 194–236 in.
  • Motor: 3HP, 208v-230v, 1Ph

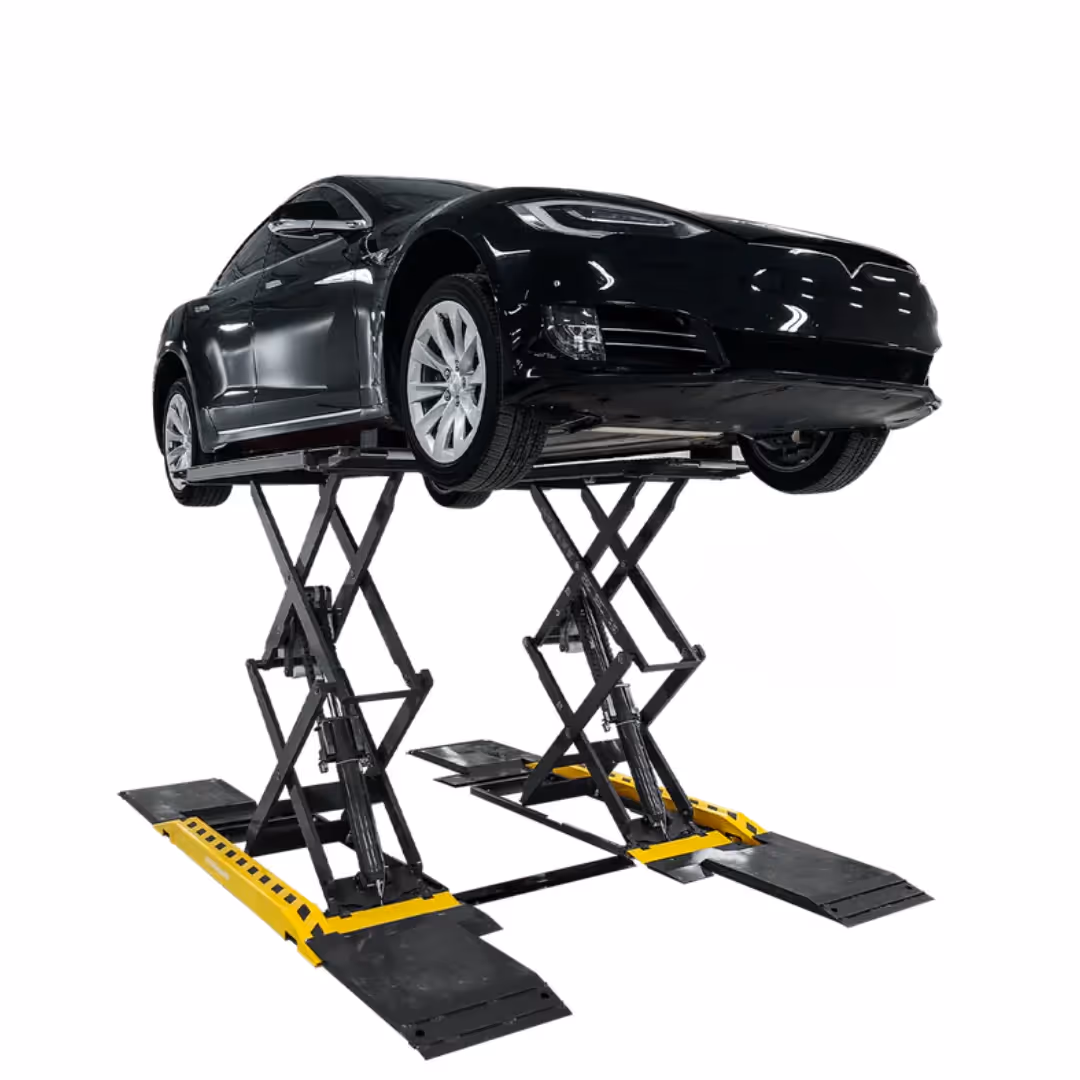

Scissor Lifts

CHALLENGER Lifts SCISSOR LIFTS

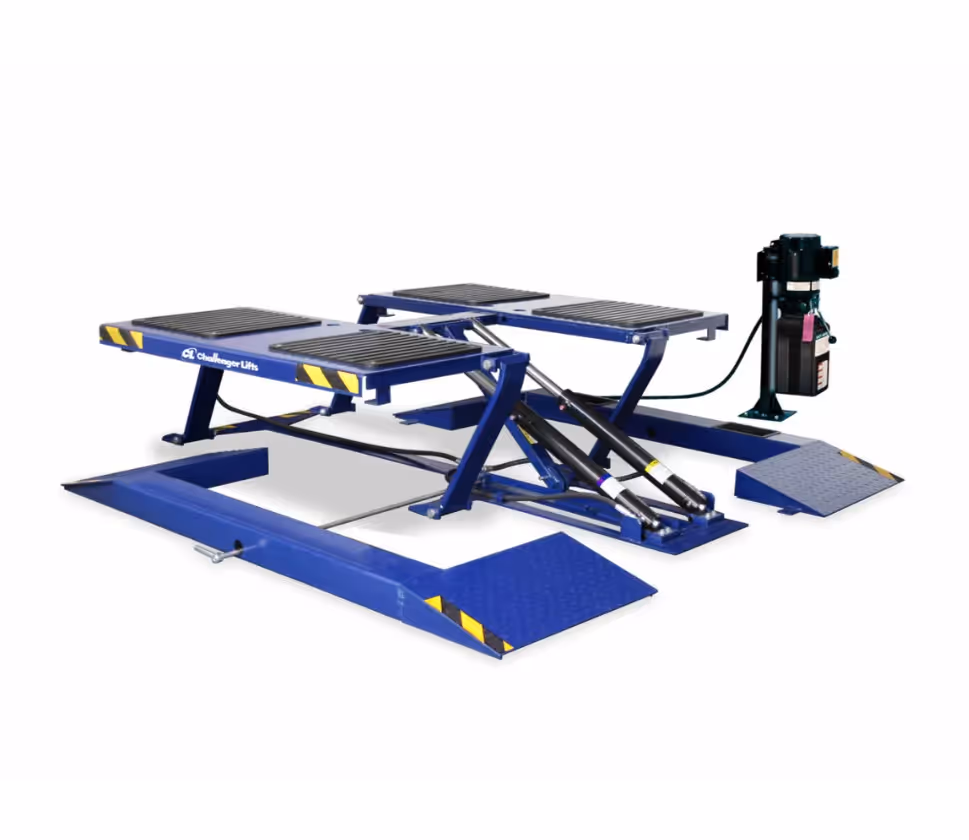

Challenger Lifts' scissor lifts fit well in quick-service environments and tight bays where floor space is limited. The low-profile design makes positioning easy, and the stable lifting platform gives technicians a solid work surface.

Available in 7,700 lb. and 14,000 lb. capacities to accommodate a wide range of vehicles.

DX77 (7.7K Scissor)

  • Capacity: 7,700 lbs.
  • Rise Height: 74-3/4 in. (standard) / 70 in. (flush mount)
  • Rise Time: 43 sec
  • Platform Length: 59 in.
  • Motor: 2HP, 208-220v, 1Ph
In-Ground Lifts

CHALLENGER Lifts IN-GROUND LIFTS

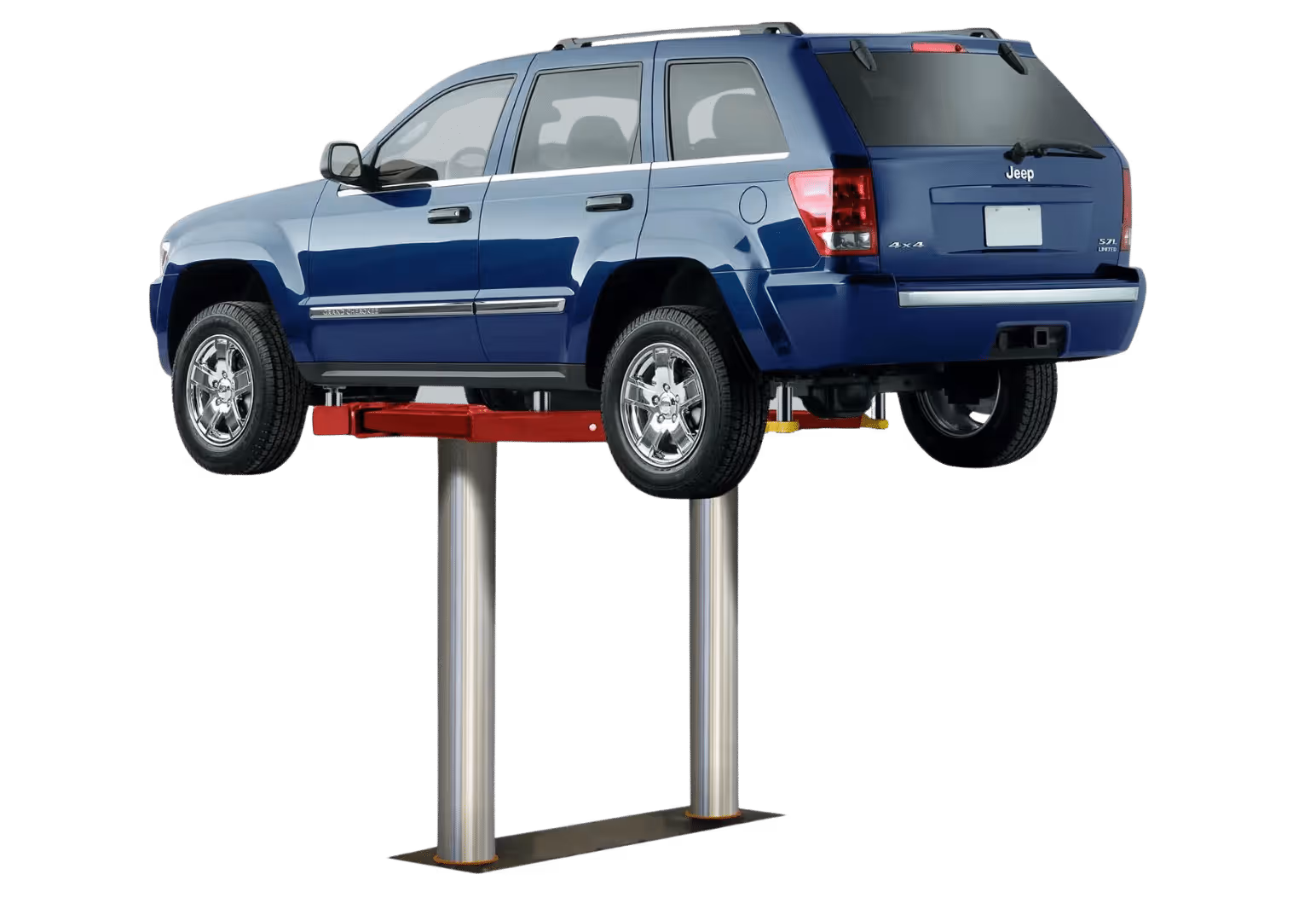

Challenger Lifts' EV series electric hydraulic cassette-style in-ground lifts keep your floor clear while meeting the demands of professional service facilities. The clean floor design creates a showroom-quality look and eliminates tripping hazards.

Available in 10,000, 12,000, and 15,000 lb. capacities with installation options for new builds and existing facilities.

9K Inground Drive-On Pad (EV1020XP9)

  • Capacity: 9,000 lbs.
  • Rise Height: 78 in.
  • Rise Time: 38–24 sec
  • Stroke: 72 in.
  • Min. Ceiling Height: 12 ft.

10K / 12K Standard Inground (EV1020 / EV1220)

  • Capacity: 10,000 / 12,000 lbs.
  • Rise Height: 78 in.
  • Rise Time: 38–24 sec (10K) / 60–38 sec (12K)
  • Stroke: 72 in.
  • Min. Ceiling Height: 12 ft.

10K / 12K Wide Inground (EW1020 / EW1220)

  • Capacity: 10,000 / 12,000 lbs.
  • Rise Height: 78 in.
  • Rise Time: 41–24 sec (10K) / 63–38 sec (12K)
  • Stroke: 72 in.
  • Min. Ceiling Height: 12 ft.
Short and Mid-Rise Lifts

CHALLENGER Lifts SHORT AND MID-RISE LIFTS

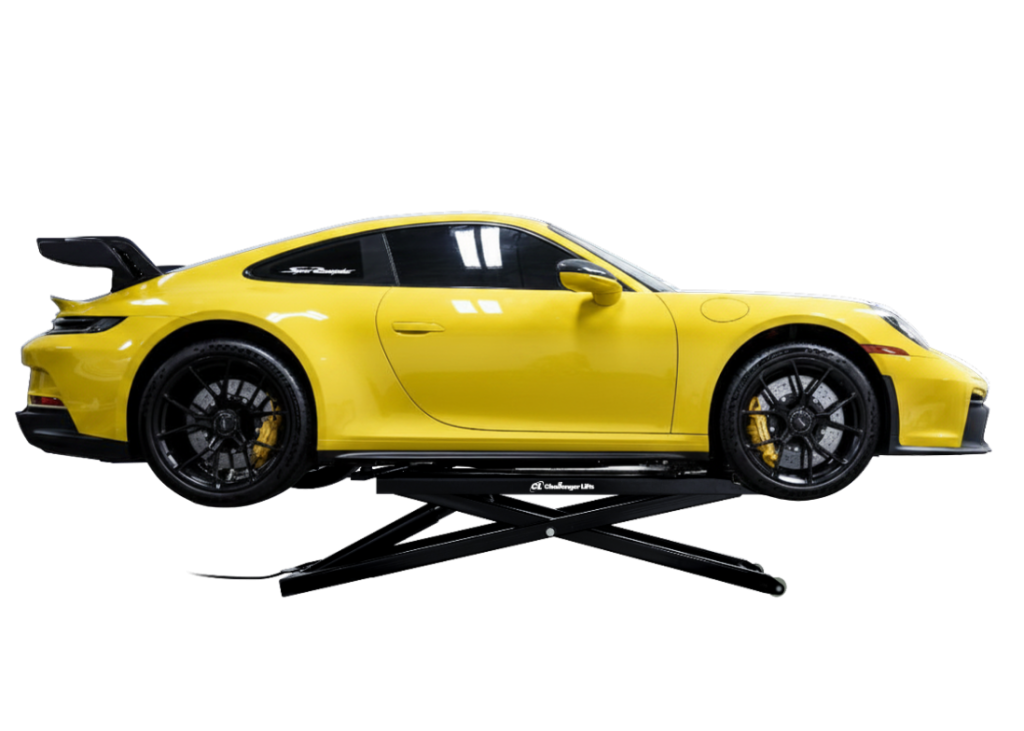

Built for brake and tire jobs, Challenger Lifts' short and mid-rise lifts are a good fit for busy shops that need to turn vehicles quickly. Dual cylinders provide smooth, even lifting, and the durable powder-coated finish holds up over time.

Available in 6,000 lb. and 10,000 lb. capacities.

SRM10 (10K Short-Rise)

  • Capacity: 10,000 lbs.
  • Rise Height: 22 in.
  • Locking Bar Heights: 13-3/4 in. / 18-1/4 in. / 21-1/4 in.
  • Motor: 1HP, 115v, 1Ph
  • Min. Bay Size: 10 x 22 ft.

MR6 (6K Mid-Rise)

  • Capacity: 6,000 lbs.
  • Rise Height: 53 in.
  • Rise Time: 45 sec
  • Motor: 1HP, 115v, 1Ph
  • Min. Bay Size: 10 x 22 ft.

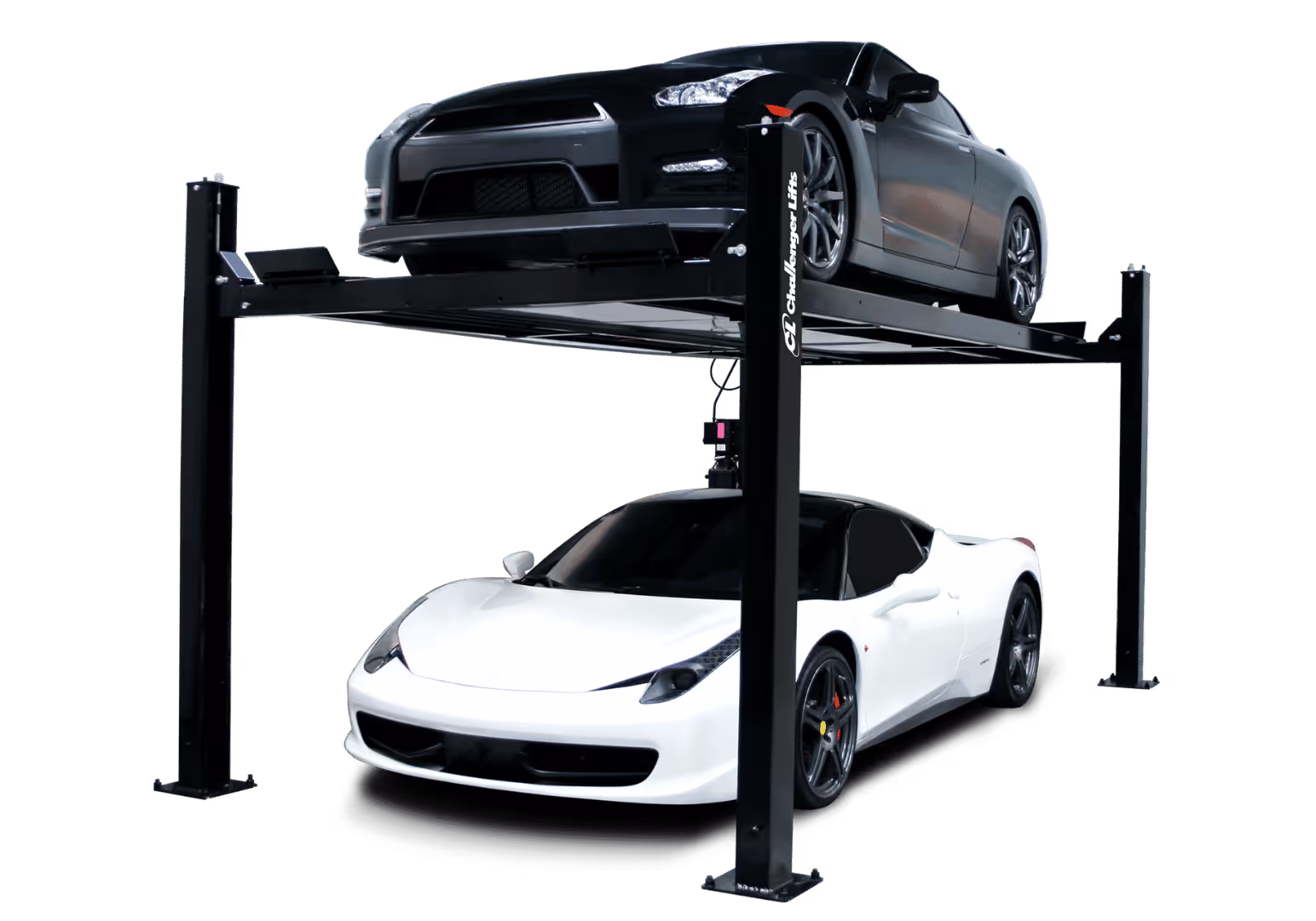

Home Storage Lifts

CHALLENGER Lifts HOME STORAGE LIFTS

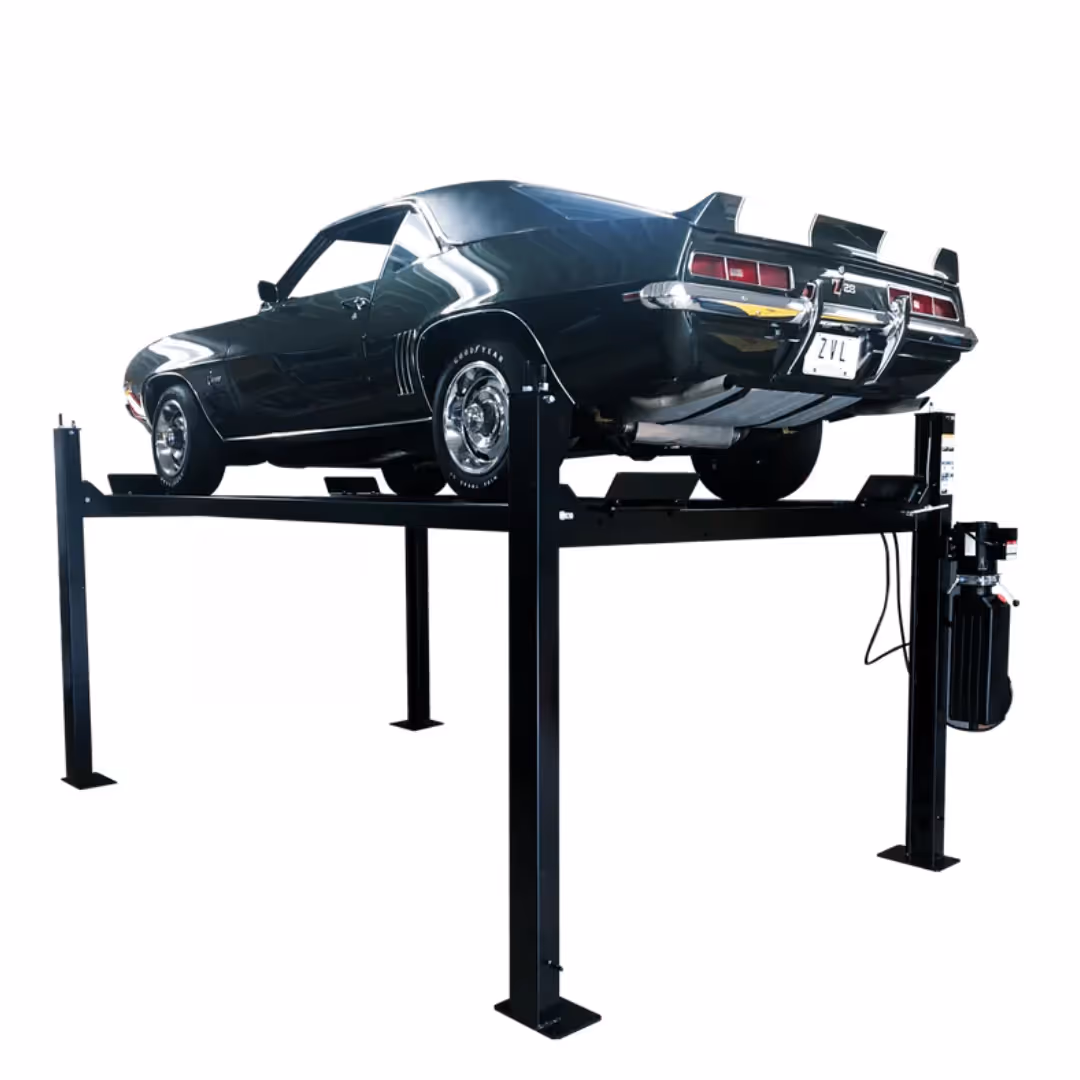

Challenger Lifts' ALI-certified home storage lifts let you double your garage space by stacking vehicles or storing one overhead. Standard, Wide, and Extended models fit a range of garage sizes, and optional accessories like drip trays and caster kits let you customize the setup.

Available in 7,000 and 9,000 lb. capacities.

CL4P7 (7K Standard)

  • Capacity: 7,000 lbs.
  • Rise Height: 68-1/8 in.
  • Max. Wheelbase: 141-1/2 in.
  • Motor: 1HP/115v or 2HP/230v
  • Min. Bay Size: 10 x 20 ft.

CL4P9 (9K Standard / Extended)

  • Capacity: 9,000 lbs.
  • Rise Height: 73-1/4–85-1/2 in. (model dependent)
  • Max. Wheelbase: 155–179 in.
  • Motor: 1HP/115v or 2HP/230v
  • Min. Bay Size: 11 x 20 ft. to 14 x 22 ft.

Ready to Spec a
Light-Duty Lift System?

Our team will help you choose the right configuration for your shop's operations.

866-499-6271
