Lifts

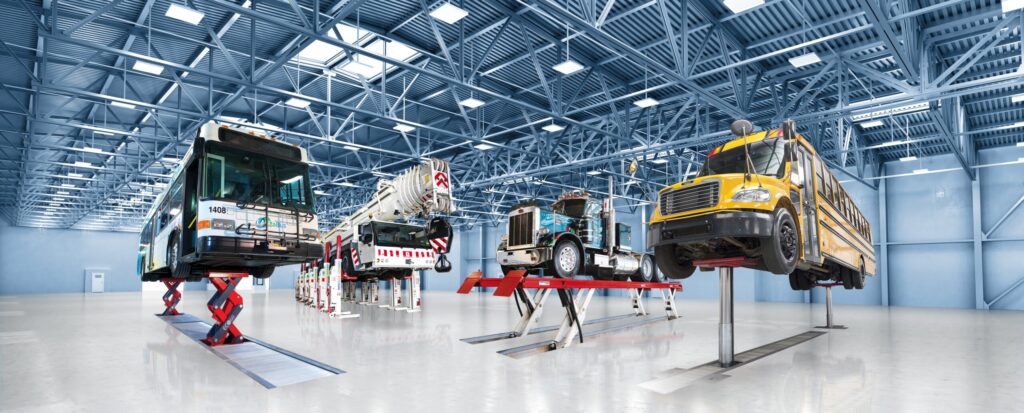

Heavy Truck and Vehicle Lifts

Mobile column lifts, in-ground piston systems, and platform lifts for vehicles from 14,000 to 150,000+ lbs. Built for fleets, transit authorities, and commercial operations.

Mobile Lift

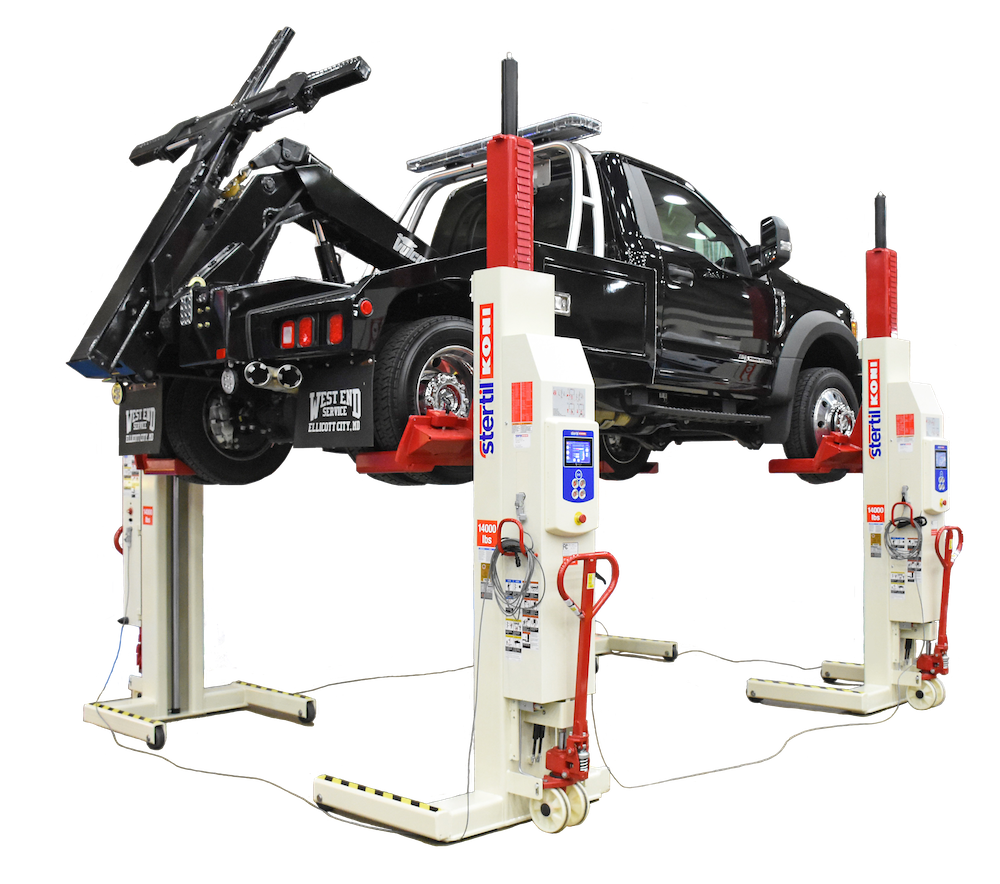

Mobile Column Lifts

For transit buses, garbage trucks, and heavy fleets that need flexible lifting without a fixed pit, Stertil-Koni mobile columns deliver unmatched portability. Easily moved into position for lifting and quickly pushed aside after use, giving you full, unobstructed access to your bay. Stertil-Koni wireless mobile columns are portable, safe, and easy to set up. No external power, no cables between columns, no tripping hazards.

Each column has a 7-inch eBright touchscreen for full operator control. You can connect up to 32 columns in a set, so the system works for just about any vehicle or configuration.

Wireless

  • Capacity: 14,000 - 40,000 lbs. per column
  • Lifting Height: 73–81 in.
  • Mechanical locks engage automatically, eBright control panel
  • Flexible set up with synchronized leveling
  • No cords on the shop floor
  • Fully battery operated
  • Lifting Time: 75–215 sec
  • Fork Type: Fixed or Adjustable
  • Fork Length: 12 or 14 in.

Cabled

  • Capacity: 14,000 - 40,000 lbs. per column
  • Lifting Height: 73–81 in.
  • Lifting Time: 75–215 sec
  • Fork Type: Fixed or Adjustable
  • Fork Length: 12 or 14 in.
  • Mechanical locks engage automatically
  • Flexible set up with synchronized leveling
  • Continuous 3-Phase Power- Always Ready

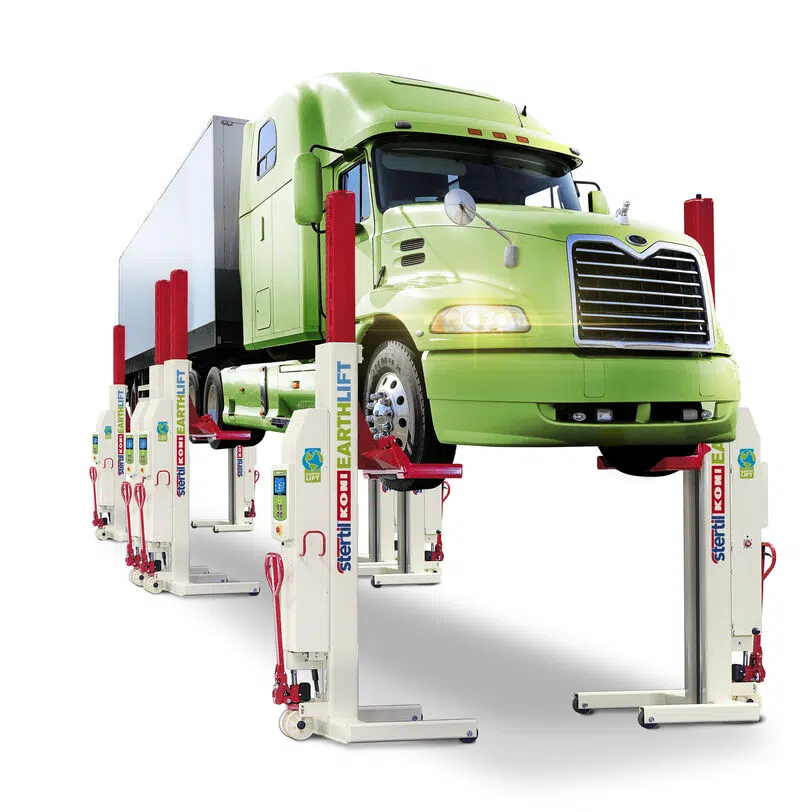

EARTHLIFT

  • Capacity: 18,500 or 22,000 lbs. per column
  • Lifting Height: 73 in.
  • Mechanical locks engage automatically, eBright control panel
  • Flexible set up with synchronized leveling
  • Active Energy Retrieval System (AERS): Regenerates battery power during descent
  • Eco-Friendly Construction
  • Lifting Time: 94 sec
  • Fork Type: Fixed or Adjustable
  • Fork Length: 14 in.
Platform lift

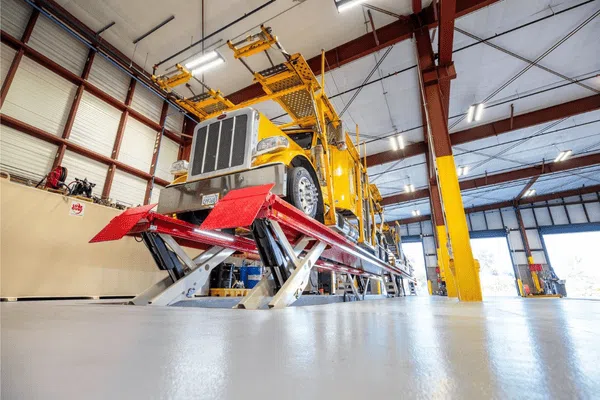

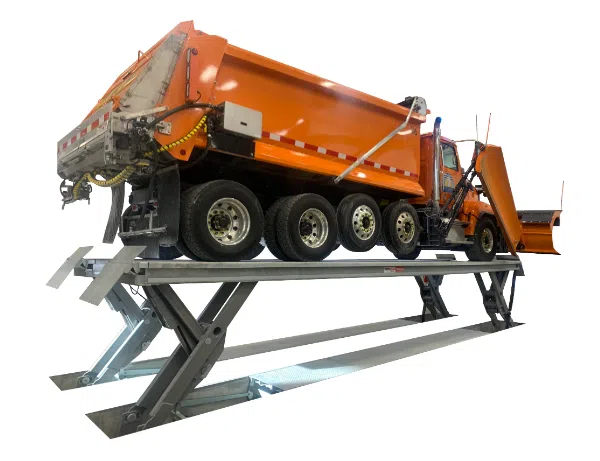

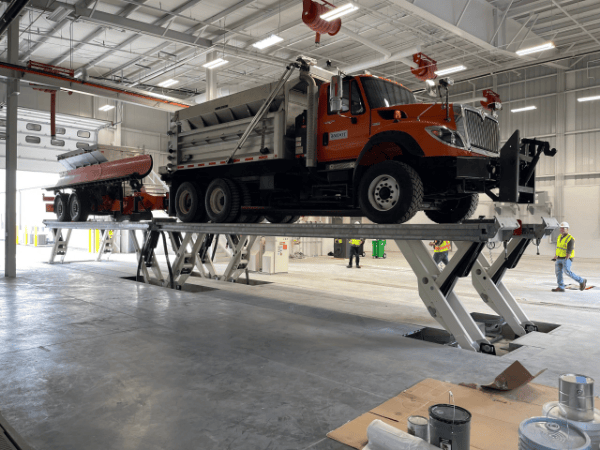

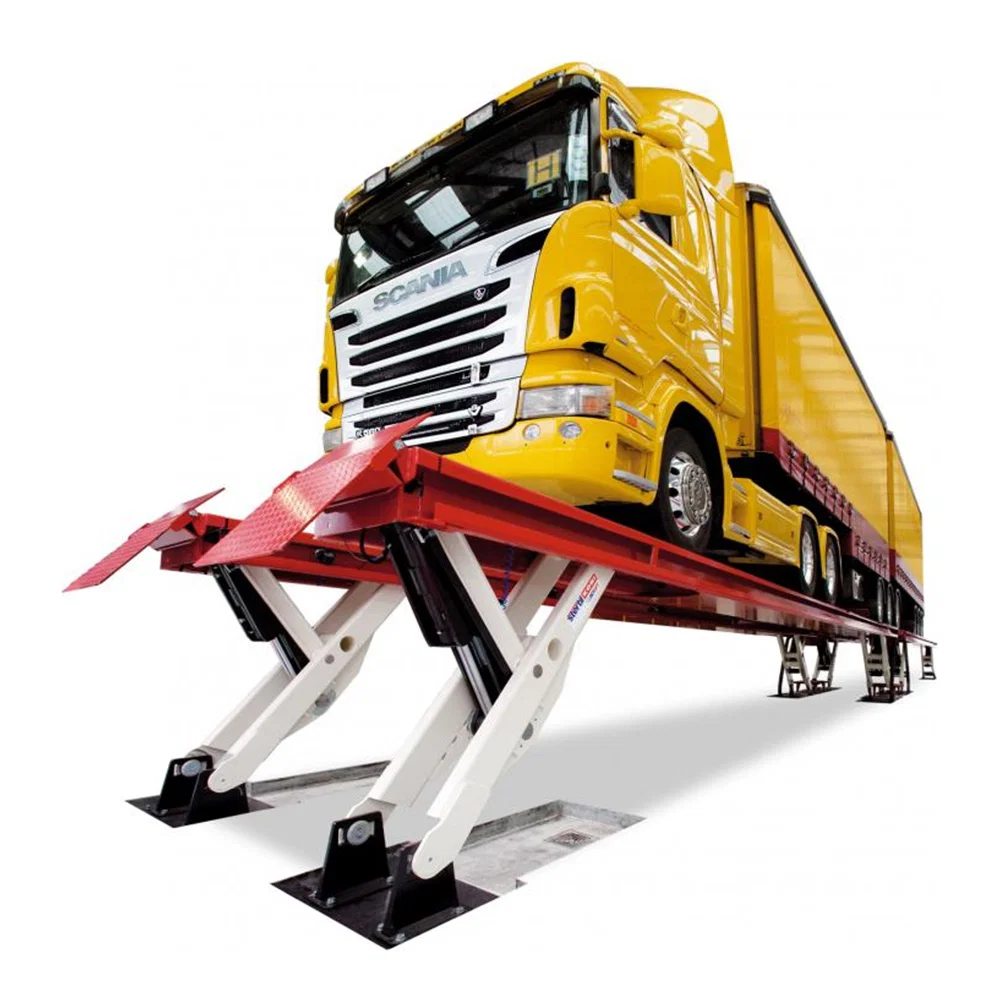

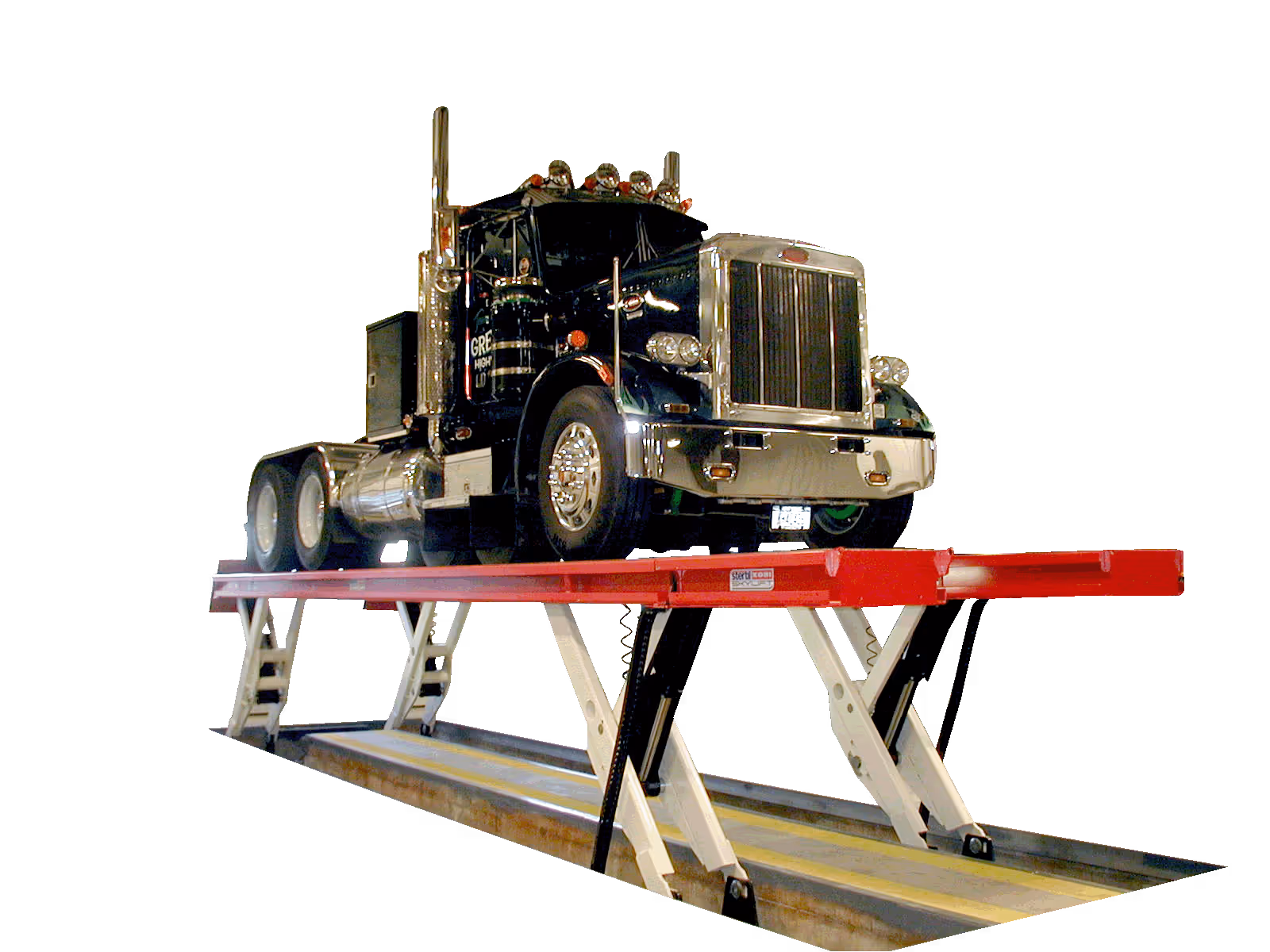

SKYLIFT Platform Lift

Built for high-volume commercial bays lifting buses, coaches, and municipal vehicles up to 78,000 lbs, Stertil-Koni’s SKYLIFT delivers a true vertical rise and an ultra-clean floor design. By completely eliminating crossbeams, base frames, and structural overhang, it gives technicians unobstructed, 360-degree undercarriage access to make routine maintenance faster and safer.

The system is highly customizable, offering surface, flush, or semi-flush mounting options with platform lengths tailored to your facility. For specialized environments, SKYLIFT is available in a fully weather-resistant Wash Bay model and can be outfitted with Stertil Guard™, a premium, anti-skid runway coating that ensures maximum tire traction and technician safety in wet or oily conditions.

View OptionsView Less

SKY 624

  • Capacity: 62,400 lbs. (Up to 124,800 lbs. in tandem)
  • Lifting Height: 69 in.
  • Vertical Rise: Lifts completely straight up with zero horizontal drift, saving valuable bay space.
  • Clear-Floor Access: No crossbeams, base frames, or overhangs—giving technicians 360° undercarriage access.
  • Compact Y-Shape Supports: Geometric design minimizes floor footprint and allows easy rolling jack movement.
  • LED Lighting: Integrated, ultra-bright LED runway lighting sets
  • Lifting Time: 90 sec
  • Platform Lengths: 23, 26, 30, 33, 40, or 48 ft.
  • Motor Capacity: 18 hp

SKY 780

  • Capacity: 78,000 lbs.
  • Lifting Height: 69 in.
  • Vertical Rise: Lifts the heaviest fleets straight up with zero horizontal drift, saving valuable bay space.
  • Clear-Floor Access: No crossbeams, base frames, or overhangs—giving technicians 360° undercarriage access.
  • Articulated Fleet Support: Ideal for tandem configurations up to 100 feet to seamlessly lift multi-axle and articulated buses.
  • LED Lighting: Integrated, ultra-bright LED runway lighting sets
  • Lifting Time: 90 sec
  • Platform Lengths: 23, 26, 30, 33, 40, or 48 ft.
  • Motor Capacity: 18 hp
In-Ground Lift

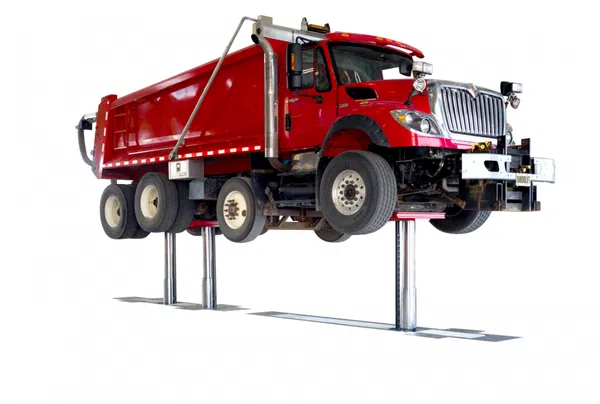

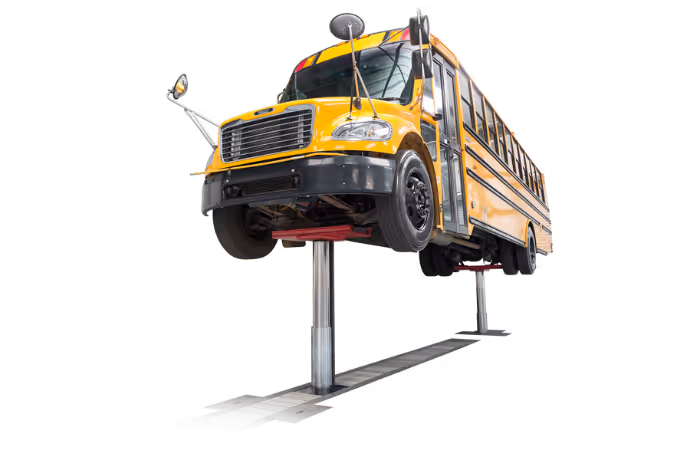

DIAMONDLIFT Piston Lift

The Stertil-Koni DIAMONDLIFT is an in-ground telescopic piston lift built for flexibility. It's a great solution for new builds, renovations, or challenging shop conditions. Each lift has a 64,000 to 140,000 pound capacity, and can be configured to fit your facility's needs.

The optional Continuous Recess® system lets the pistons drop below floor level anywhere in the travel range, which is good for low-clearance vehicles like city buses or articulated coaches.

View OptionsView Less

64/2 & 70/2 Piston

  • Capacity: 64,000–70,000 lbs
  • Lifting Height: 73 in.
  • Lifting Time: 90 sec
  • Pit Depth: 72 in.
  • Travel Range: 10, 13, or 17 ft.

96/3 & 105/3 Piston

  • Capacity: 96,000–105,000 lbs
  • Lifting Height: 73 in.
  • Lifting Time: 90 sec
  • Pit Depth: 72 in.
  • Travel Range: 10, 13, or 17 ft.

105/4 and 140/4 Piston

  • Capacity: 105,000–140,000 lbs
  • Lifting Height: 73 in.
  • Lifting Time: 90 sec
  • Pit Depth: 72 in.
  • Travel Range: 10, 13, or 17 ft.
Scissor Lift

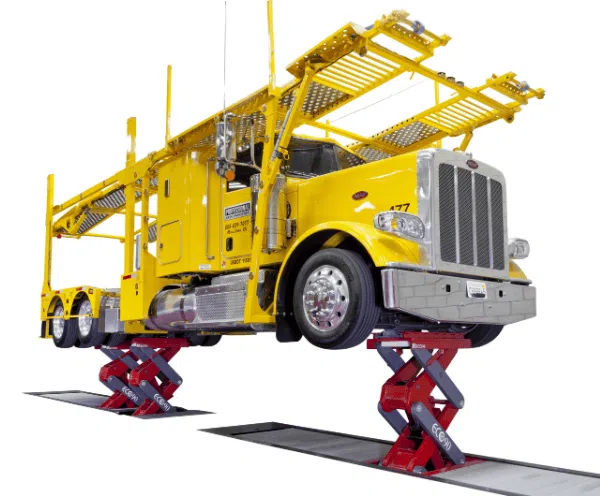

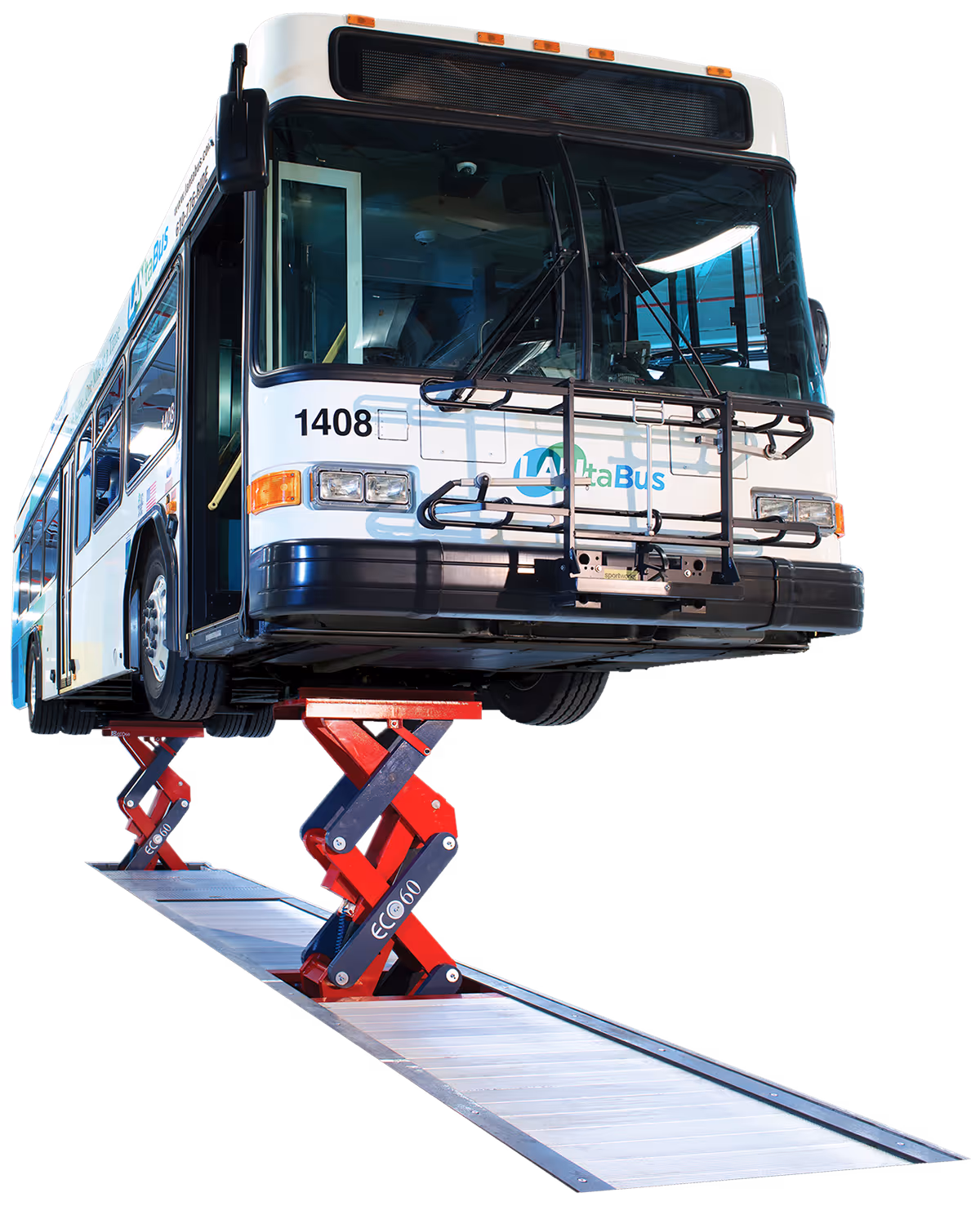

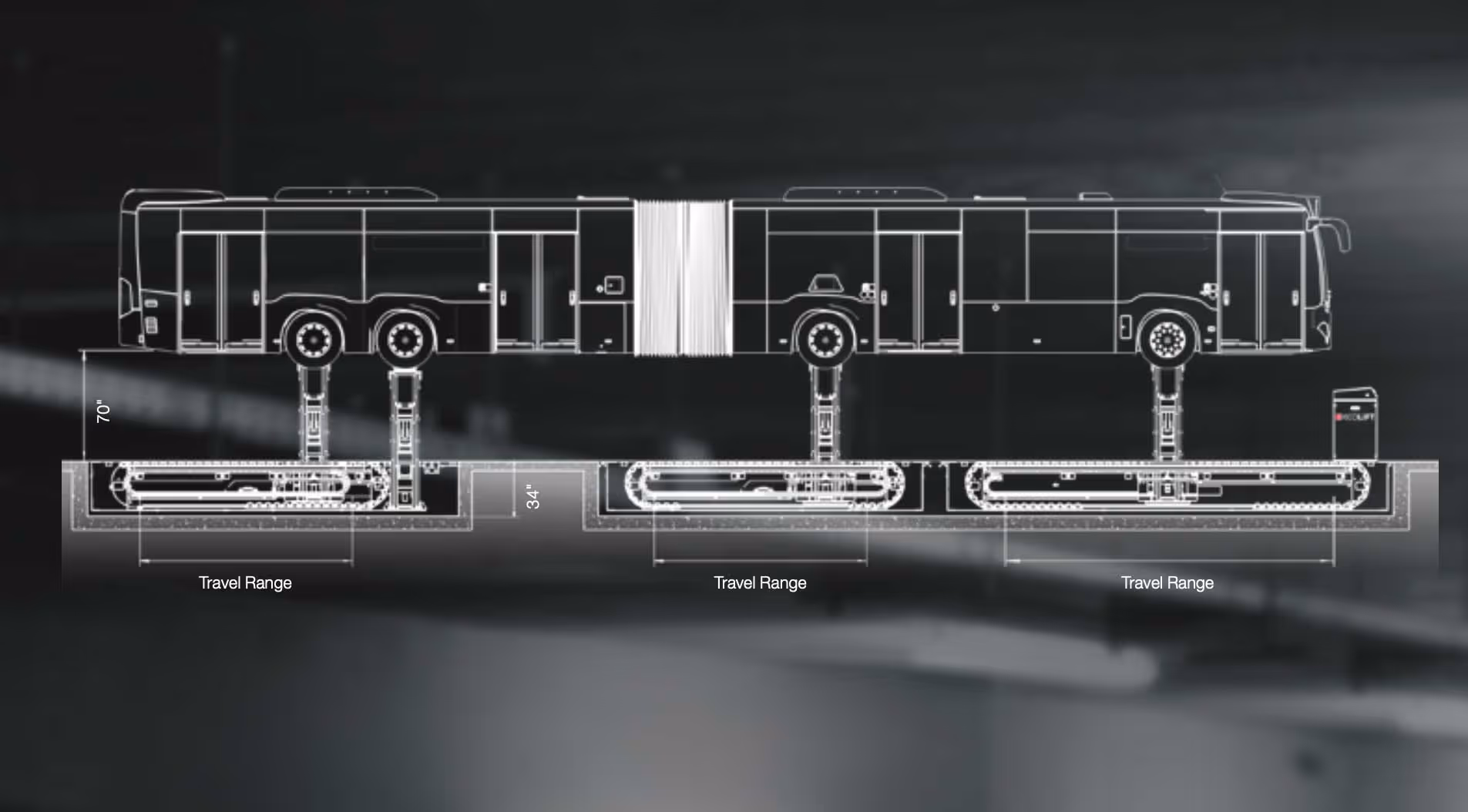

ECOLIFT In-Ground Scissor Lift

The ECOLIFT is an ultra-shallow, full-rise axle-engaging in-ground scissor lift. With only a 34" pit depth, it's a great option for retrofits or shops where deep excavation isn't possible.

Available in 2, 3, or 4 scissor configurations with total lifting capacities of 60,000 lbs., 90,000 lbs., and 120,000 lbs. respectively at 30,000 lbs. per scissor. ECOLIFT boasts a full 70 feet of lift height, and its wheels-free approach makes it easy to work on heavy-duty vehicles.

View OptionsView Less

Eco 60

  • Capacity: 60,000 lbs.
  • Lifting Height: 70 in.
  • Lifting Time: 90 sec
  • Pit Depth: 34 in.
  • Travel Range: 10, 13, or 17 ft.

Eco 90

  • Capacity: 90,000 lbs.
  • Lifting Height: 70 in.
  • Lifting Time: 90 sec
  • Pit Depth: 34 in.
  • Travel Range: 10, 13, or 17 ft.

Eco 120

  • Capacity: 120,000 lbs.
  • Lifting Height: 70 in.
  • Lifting Time: 90 sec
  • Pit Depth: 34 in.
  • Travel Range: 10, 13, or 17 ft.
Open Floor Lift

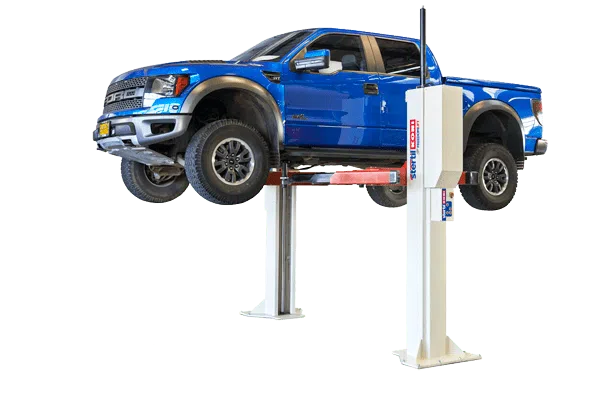

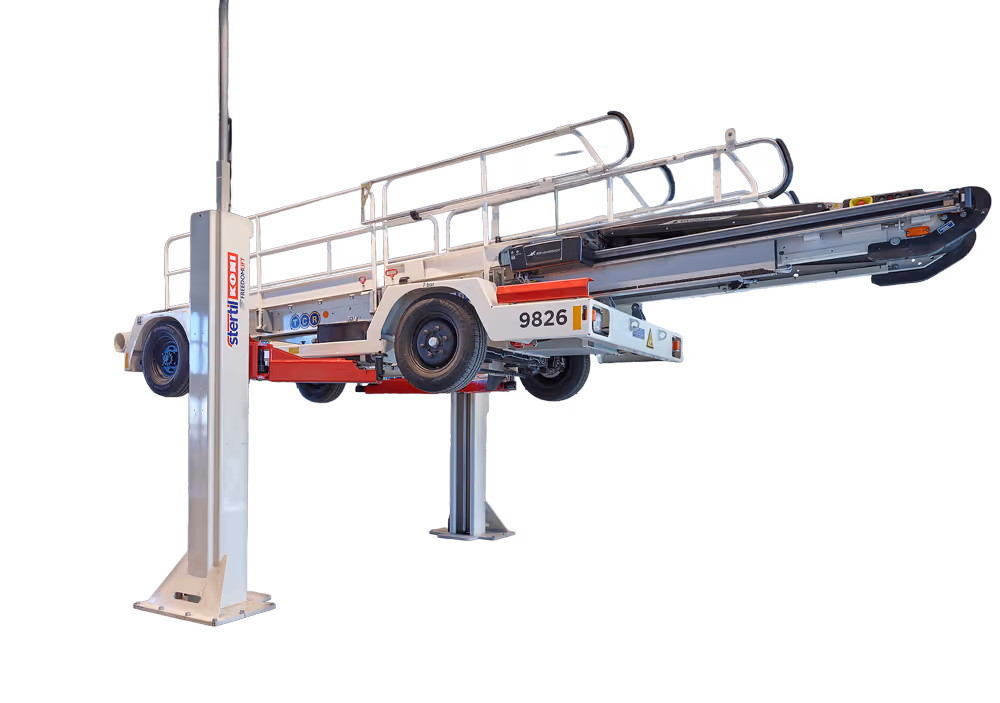

FREEDOMLIFT OPEN-FLOOR LIFT

The FreedomLift is a symmetrical, 2-post lift that maximizes shop space. Single or double telescopic arms provide the reach and flexibility needed for various vehicle types.
‍
Available in configurations from 16,000 to 30,000 lbs, with adaptable setups to suit your workflow.

View OptionsView Less

SK 2.16

  • Capacity: 16,000 lbs.
  • Lifting Height: 80.6 in.
  • Lifting Time: 58 sec
  • Min. Arm Length: 35.4 in.
  • Max. Arm Length: 77.2 in.

SK 2.20

  • Capacity: 20,000 lbs.
  • Lifting Height: 77.9–78.5 in.
  • Lifting Time: 58 sec
  • Min. Arm Length: 35.4 in.
  • Max. Arm Length: 76.4 in.

SK 2.30

  • Capacity: 30,000 lbs.
  • Lifting Height: 77.9–78.5 in.
  • Lifting Time: 95 sec
  • Min. Arm Length: 35.4 in.
  • Max. Arm Length: 76.4 in.
4-Post Lift

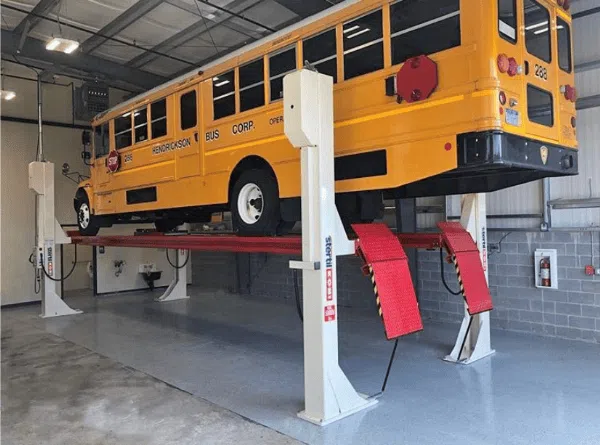

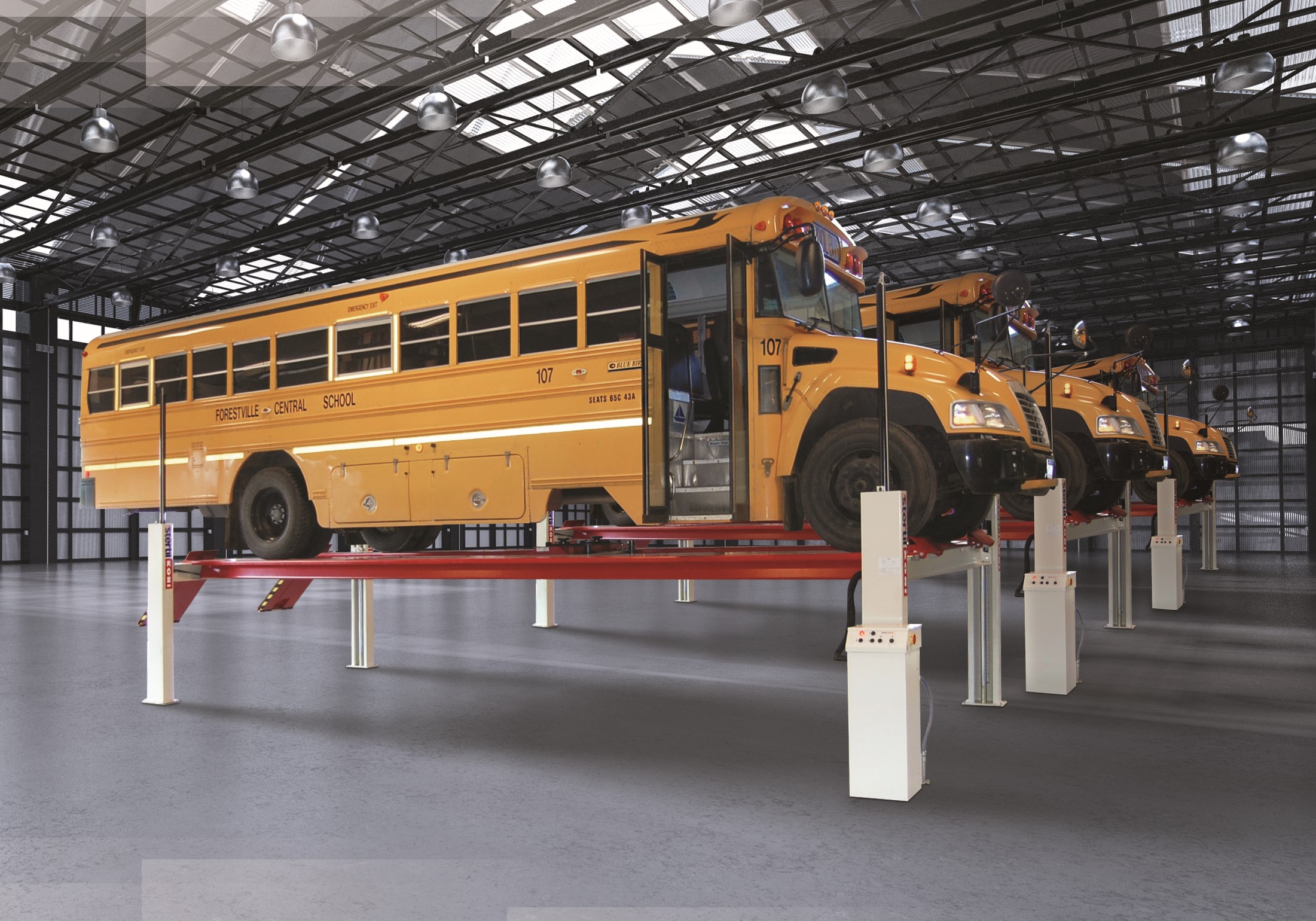

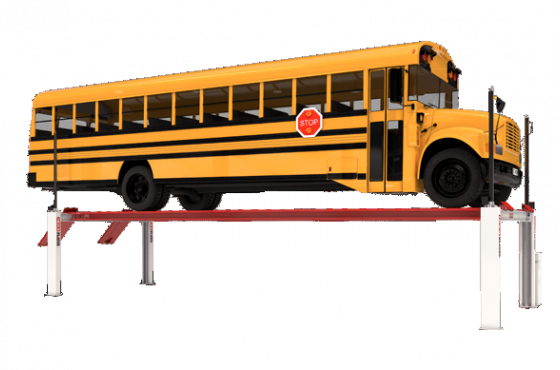

STERTIL-KONI HEAVY DUTY 4-POST LIFT

Stertil-Koni Heavy Duty 4-Post Lifts handle commercial trucks, trailers, and fleet vehicles from 30,000 to 132,000 lbs across four models. The low drive-on height works well for low-clearance vehicles, and dependable hydraulic technology keeps things running.

Available in surface-mounted or tandem configurations with automatic overload protection and independent mechanical locking systems.

View OptionsView Less

ST 4120

  • Capacity: 30,000 lbs.
  • Lifting Height: 74.5 in.
  • Lifting Time: 90 sec
  • Runway Lengths: 15, 20, 26, or 33 ft.
  • Motor: 1×7.5 hp

ST 4175 / ST 4250

  • Capacity: 50,000 / 66,000 lbs.
  • Lifting Height: 75 in.
  • Lifting Time: 72 sec
  • Runway Lengths: 20, 26, 30, 33, or 38 ft.
  • Motor: 4×3 hp

ST 4600

  • Capacity: 132,000 lbs.
  • Lifting Height: 74 in.
  • Lifting Time: 190 sec
  • Runway Length: 39 ft.
  • Motor: 4×3 hp

Ready to spec a
heavy-duty lift system?

Our team will help you choose the right configuration for your shop.

866-499-6271
